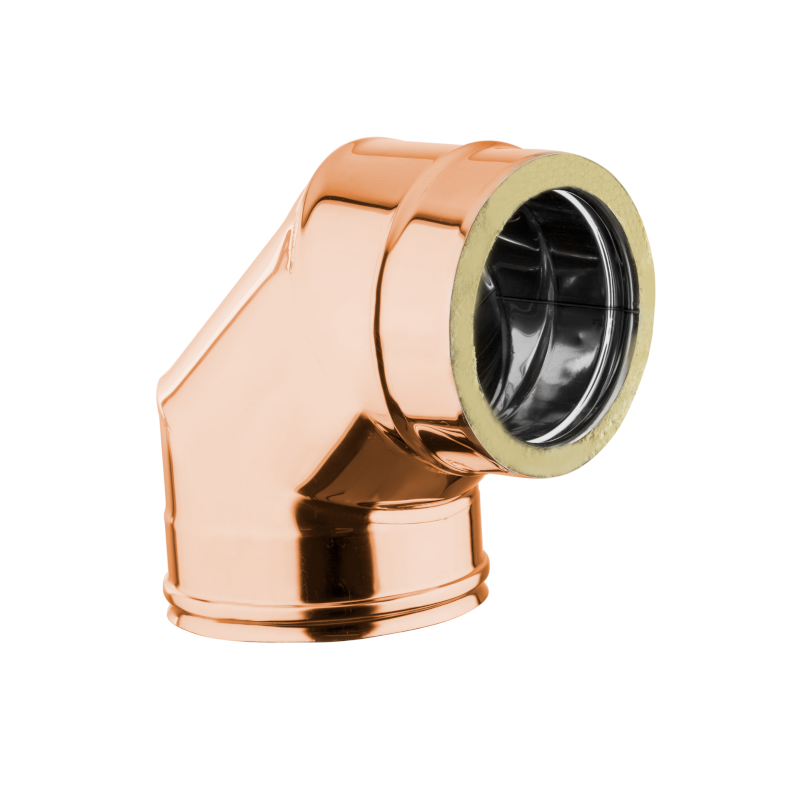

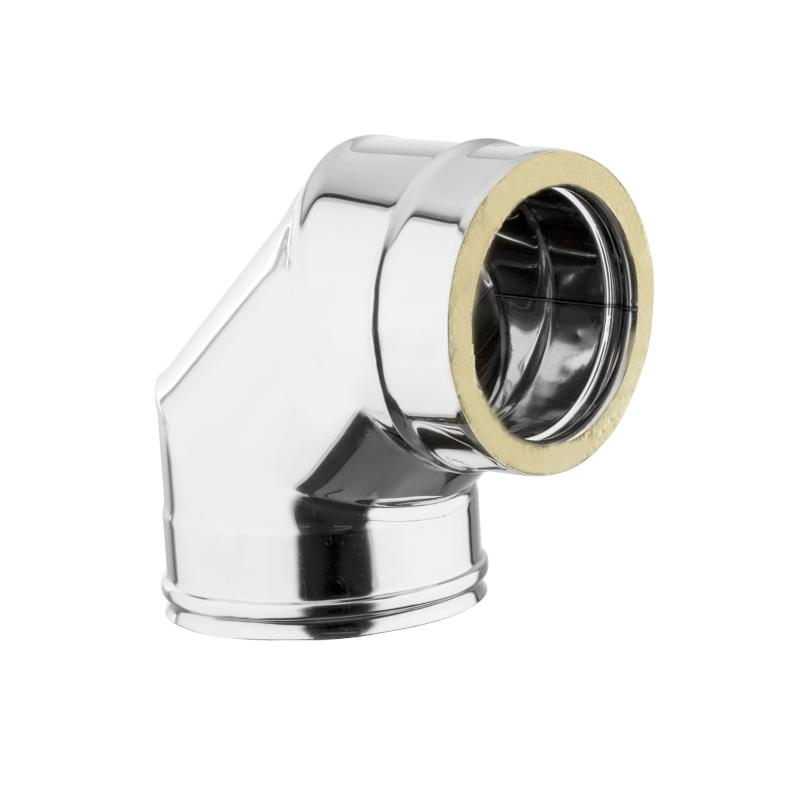

90° ELBOW
This bend can be used to divert the axis of the flue stack through 90°.
Elbow with inspection door is manufactured on request, with standard or high temperature cap.
PRODOTTO SU MISURA
|

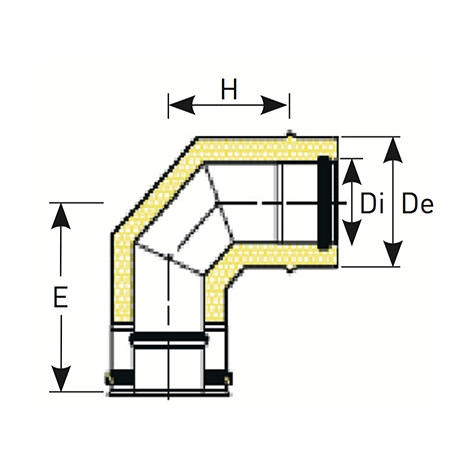

CODE |
Ø internal mm |
Ø external mm |
H mm |
E mm |
insulation thickness mm |
|
C90D80DP |
80 |
130 |
102 |
178 |
25 |
|
C90D100DP |
100 |
150 |
110 |
175 |
25 |
|
C90D130DP |
130 |
180 |
126 |
186 |
25 |
|
C90D150DP |
150 |
200 |
135 |
200 |
25 |
|
C90D180DP |
180 |
230 |
145 |
210 |
25 |
|
C90D200DP |
200 |
250 |
150 |
215 |
25 |
|
C90D250DP |
250 |
300 |
185 |
252 |
25 |
|
C90D300DP |
300 |
350 |
215 |
275 |
25 |
|
C90D350DP |
350 |
450 |
273 |
355 |
50 |
