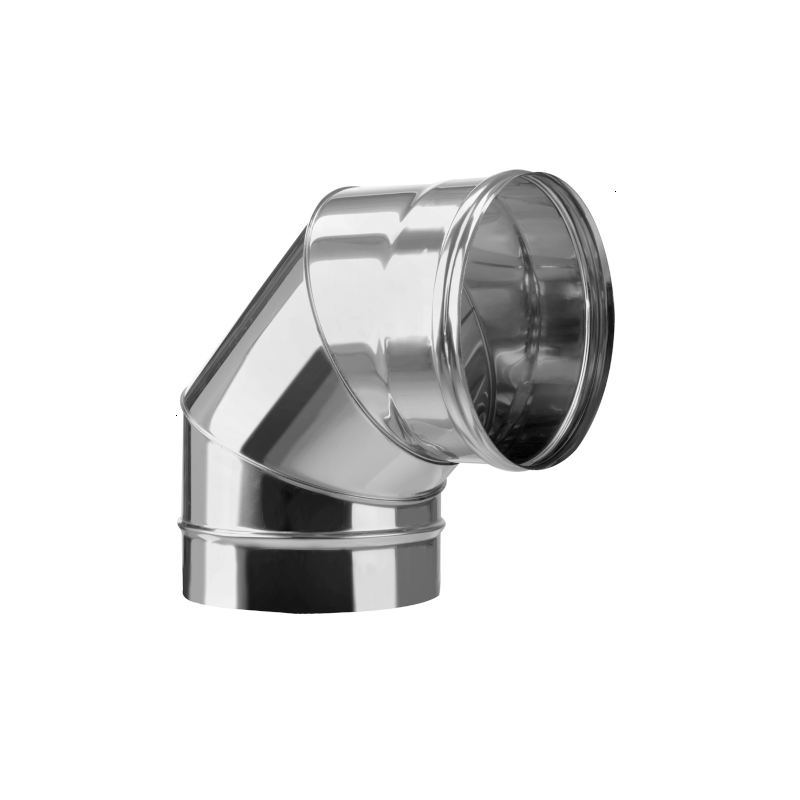

90° ELBOW

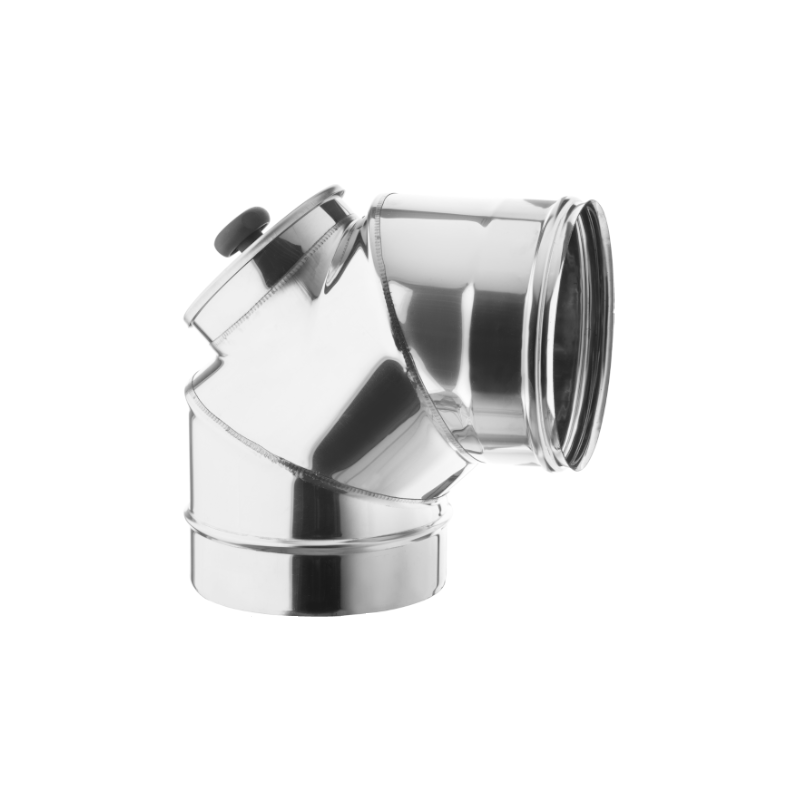

Elbow used to provide a 90°change of direction from the vertical. Elbows with inspection door are for gaseous fuel.
On request available with high temperatures cap.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|
CODE |
Diam. mm |

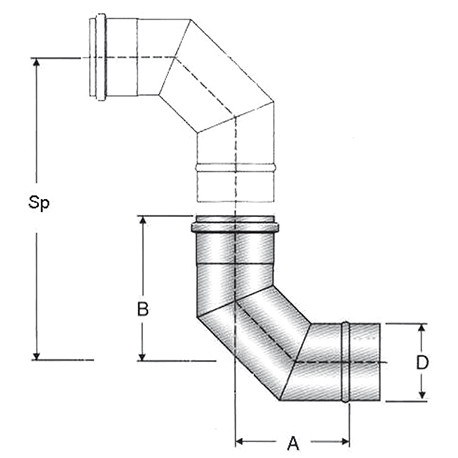

“A” mm |
“B” mm |
“Sp” mm |
|
C90D80MP C90D80MPI |
80 |
94 |
147 |
240 |
|
C90D100MP C90D100MPI |
100 |
94 |
147 |
240 |
|
C90D120MP C90D120MPI |
120 |
116 |
175 |
290 |
|
C90D130MP C90D130MPI |
130 |
130 |
177 |
305 |
|
C90D140MP C90D140MPI |
140 |
130 |
185 |
313 |
|
C90D150MP C90D150MPI |
150 |
125 |
177 |
301 |
|
C90D160MP C90D160MPI |
160 |
125 |
172 |
296 |
|
C90D180MP C90D180MPI |
180 |
146 |
193 |
338 |
|
C90D200MP C90D200MPI |
200 |
155 |
207 |
361 |
|
C90D220MP C90D220MPI |
220 |
147 |
200 |
346 |
|
C90D250MP C90D250MPI |
250 |
176 |
229 |
405 |
|
C90D300MP C90D300MPI |
300 |
209 |
263 |
472 |
