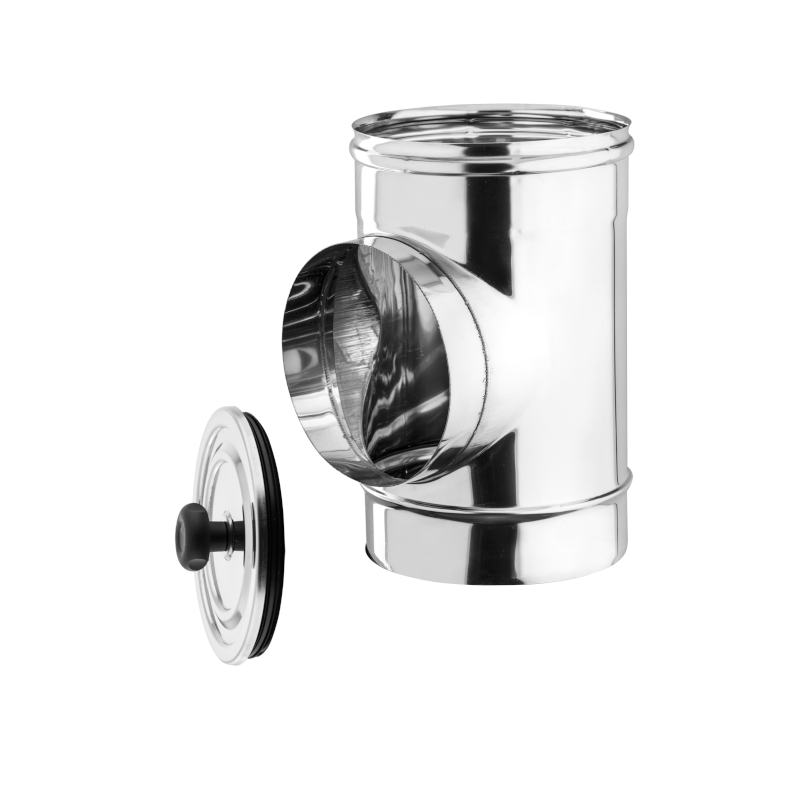

INSPECTION LENGHT
This element is required under statutory regulations (Italian Presidential Decree 1391, Article 7.7) as an inspection point for flue installations. Can be equipped with a tee cap to collect condensate. It is recommended that one of these modules should be installed every 10 metres along a flue stack. Ideal for gas boilers producing flue gases no hotter than 160 °C. Avavilable in 2 models: with standard cap and with high temperature cap.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|
CODE |
Diam. mm |
“H”- Useful length mm |
Total Length mm |
“C” mm Hole center-cap distance |
“B” mm Male part height |
|
MODISPD80MP MODISPD80-ATMP |
80 |
190 |
245 |
110 |
50 |
|
MODISPD100MP MODISPD100-ATMP |
100 |
270 |
245 |
120 |
50 |
|
MODISPD120MP MODISPD120-ATMP |
120 |
270 |
325 |
130 |
50 |
|
MODISP130MP MODISPD130-ATMP |
130 |
270 |
325 |
135 |
50 |
|
MODISPD140MP MODISPD814-ATMP |
140 |
270 |
325 |
140 |
50 |
|
MODISPD150MP MODISPD150-ATMP |
150 |
270 |
325 |
145 |
50 |
|
MODISPD160MP MODISPD160-ATMP |
160 |
270 |
325 |
150 |
50 |
|
MODISPD180MP MODISPD180-ATMP |
180 |
270 |
325 |
160 |
50 |
|
MODISPD200MP MODISPD200-ATMP |
200 |
270 |
325 |
170 |
50 |
|
MODISPD220MP MODISPD220-ATMP |
220 |
270 |
325 |
180 |
50 |
|
MODISPD250MP MODISPD250-ATMP |
250 |
270 |
325 |
195 |
50 |
|
MODISPD300MP MODISPD300-ATMP |
300 |
270 |
325 |
220 |
50 |
