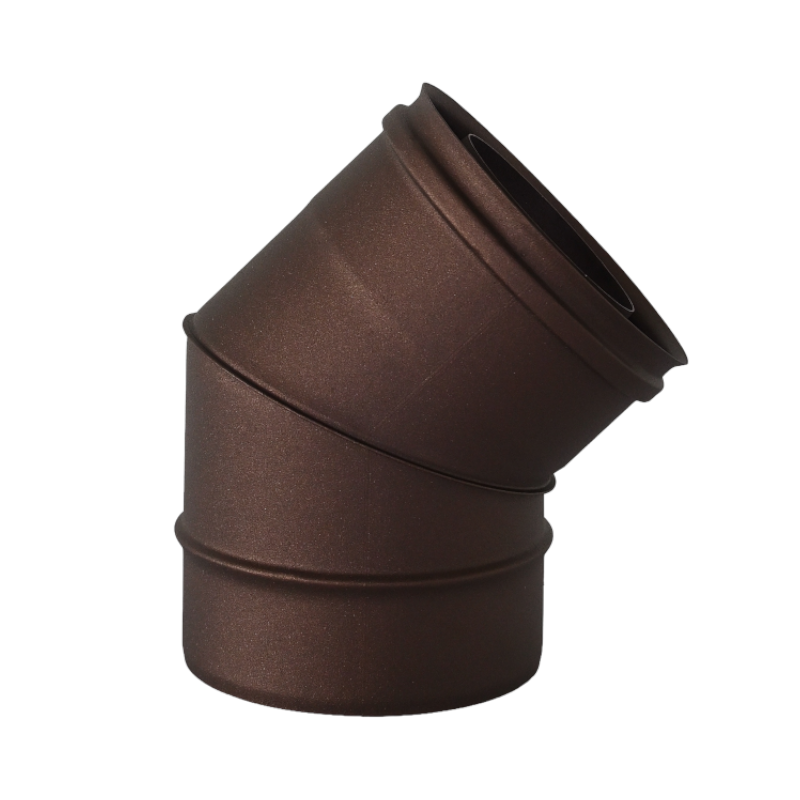

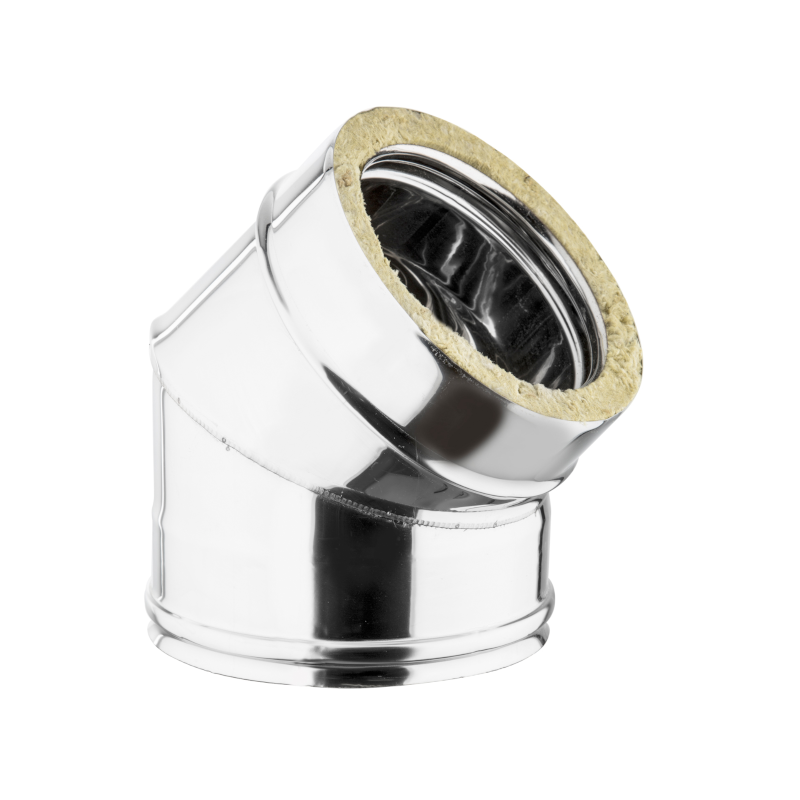

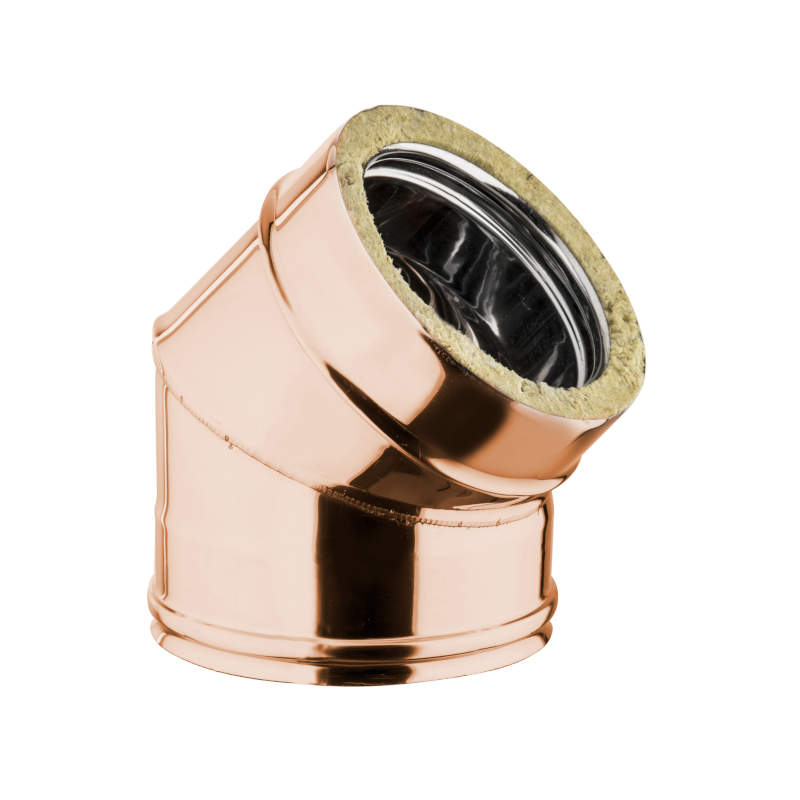

45° ELBOW
This elbow can be used to divert the axis of the flue stack through 45°.
PRODOTTO SU MISURA
|

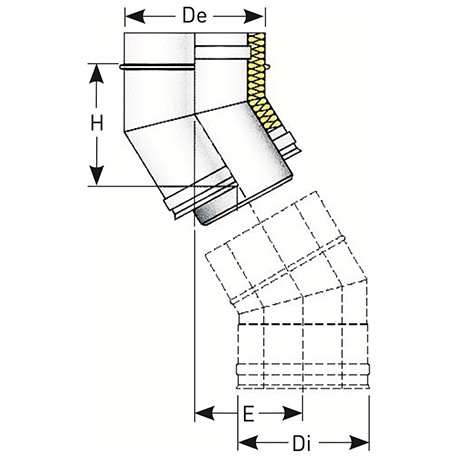

CODE |
Ø internal mm |
Ø external mm |
H – Elbow Height mm |
E – Offset hole centres mm |
insulation thickness mm |
|
C45D80DP |
80 |
130 |
133 |
103 |
25 |
|
C45D100DP |
100 |
150 |
138 |
108 |
25 |
|
C45D130DP |
130 |
180 |
155 |
120 |
25 |
|
C45D150DP |
150 |
200 |
156 |
122 |
25 |
|
C45D180DP |
180 |
230 |
191 |
152 |
25 |
|
C45D200DP |
200 |
250 |
175 |
140 |
25 |
|
C45D250DP |
250 |
300 |
196 |
156 |
25 |
|
C45D300DP |
300 |
350 |
212 |
170 |
25 |
|
C45D350DP |
350 |
400 |
346 |
280 |
50 |
