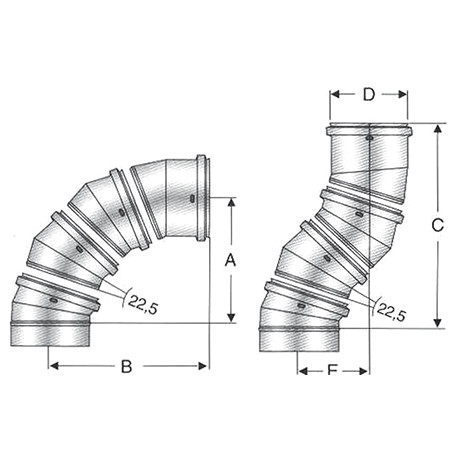

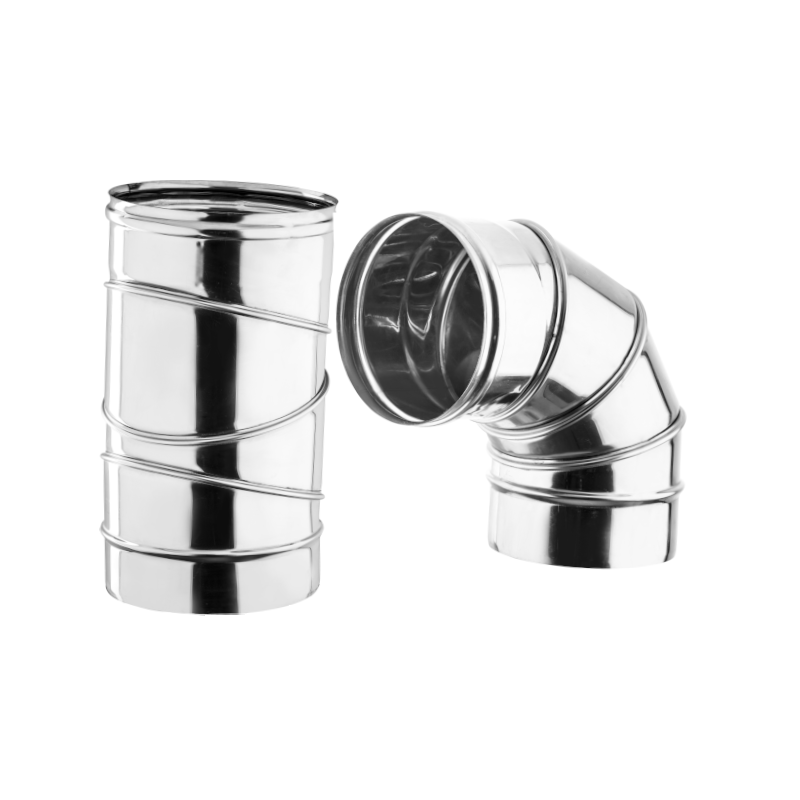

ADJUSTABLE ELBOW
This rotating elbow can be used ONLY for gaseous fuel, due to the presence of seals.
For diameters 150-180-200-250 on requestwe can supply elbows with segments joined without seal and mechanical strength is ensured by a clamp band for each section. With this new system, this elbow is suitable to be also used for solid fuels.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|
CODICE |
Diam. Mm |
“A” mm |
“B” mm |
“C” mm |
“E” mm |
|
CGIRD80MP |
80 |
125 |
175 |
233 |
67 |
|
CGIRD100MP |
100 |
135 |
185 |
247 |
74 |
|
CGIRD120MP |
120 |
145 |
195 |
261 |
79 |
|
CGIRD130MP |
130 |
150 |
200 |
268 |
82 |
|
CGIRD140MP |
140 |
155 |
205 |
275 |
85 |
|
CGIRD150MP |
150 |
160 |
210 |
283 |
89 |
|
CGIRD160MP |
160 |
165 |
215 |
290 |
91 |
|
CGIRD180MP |
180 |
175 |
225 |
304 |
97 |
|
CGIRD200MP |
200 |
185 |
235 |
312 |
101 |
|
CGIRD220MP |
220 |
195 |
245 |
332 |
108 |
|
CGIRD250MP |
250 |
210 |
260 |
353 |
117 |
|
CODE |
Diam. Mm |
“A” mm hauteur utile |
“B” mm |
“C” mm |
|
CGIRD150CFMP |
150 |
325 |
210 |
160 |
|
CGIRD2180CFMP |
180 |
340 |
225 |
175 |
|
CGIRD200CFMP |
200 |
360 |
235 |
185 |
|
CGIRD250CFMP |
250 |
485 |
260 |
210 |
