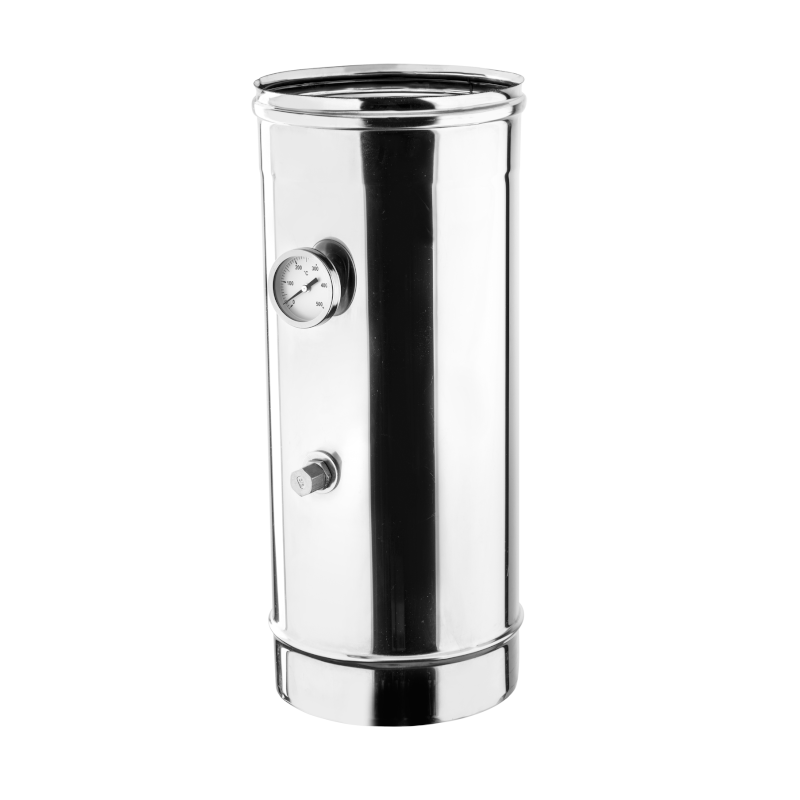

SMOKE AND TEMPERATURE PROBE LENGTH
Like the flue gas sampling length, this is required under statutory regulations (Italian Presidential Decree 1391, Article 7.7) and specified by UNI standards 140640 and 10641. In vertical stacks, this module is positioned above the Tee or 135° branch at a distance equivalent to 3 times the internal diameter.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|

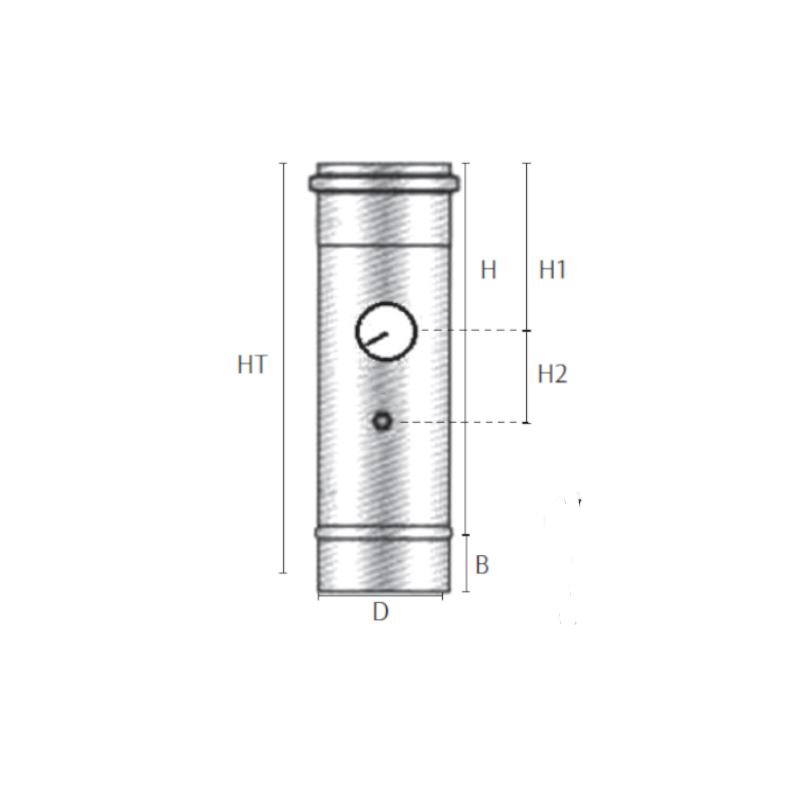

CODE |
Diam. Mm |
“H” mm useful length |
“H1” mm Height center thermometer – upper edge |
“H2” mm Height center thermometer – threaded insert |
“B” mm height male part |
|
MODPRELFUMIETD80MP |
80 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD100MP |
100 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD120MP |
120 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD130MP |
130 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD140MP |
140 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD150MP |
150 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD160MP |
160 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD180MP |
180 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD200MP |
200 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD220MP |
220 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD250MP |
250 |
440 |
145 |
290 |
50 |
|
MODPRELFUMIETD300MP |
300 |
440 |
145 |
290 |
50 |
