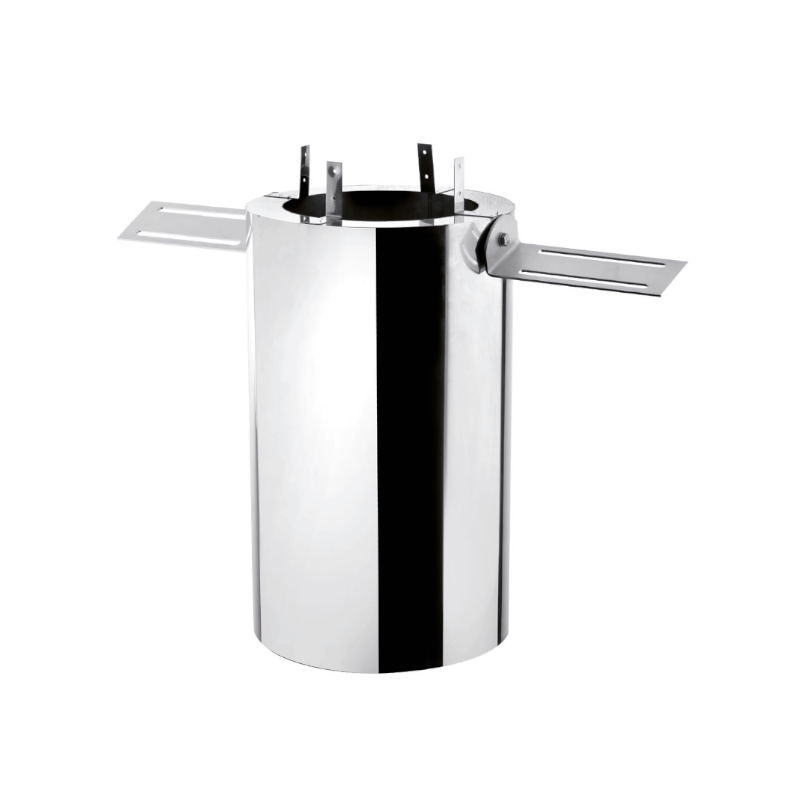

DOUBLE WALL CEILING FITTING G0 FOR WOODEN ROOFS

Ceiling fitting “G0” for wooden roofs is an insulated system used to cross wooden roofs/ceilings with twin wall pipes, suitable for solid combustibles heating appliances working with dry smokes. Its composition avoids the possible transmission/dispersion of heat, with 2 stainless steel walls of 60 mm insulated with pressed fibres for high temperatures, calcium silicate boards to be inserted under fixing brackets and insulating materials to be installed in contact points fitting/twin wall pipe.

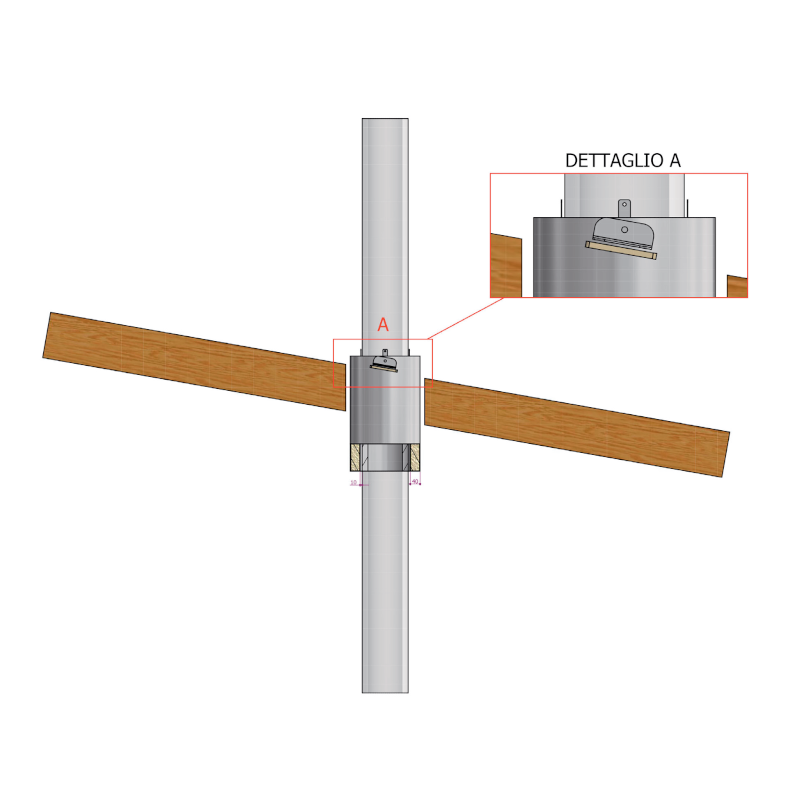

The chimney inside the fitting is spaced out of 10 mm, while the fitting (60 mm) could be installed also in direct contact with the ceiling/roof.

Finishing rosette if needed should be ordered separately, click on the following link:

https://mcfumisteria.it/en/prodotto/finishing-rosette-for-twin-wall-ceiling-fitting-g00/-finitura-per-passaggio-tetti-in-legno-g00/

For this item the proper lead flashing to be used is the  “G0” version.

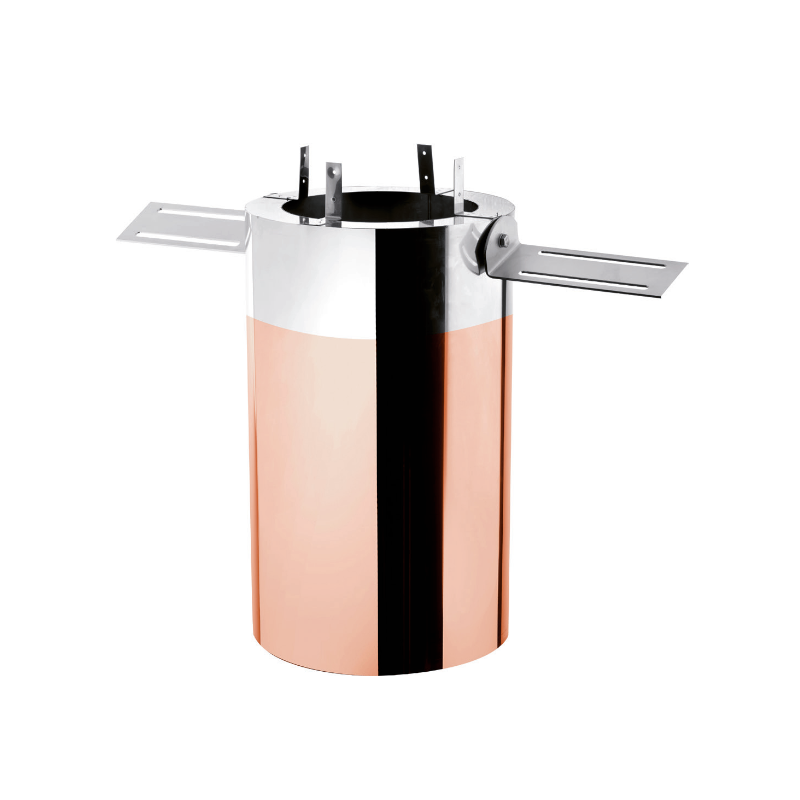

Price for the oxidized copper version will be established in the order confirmation.
