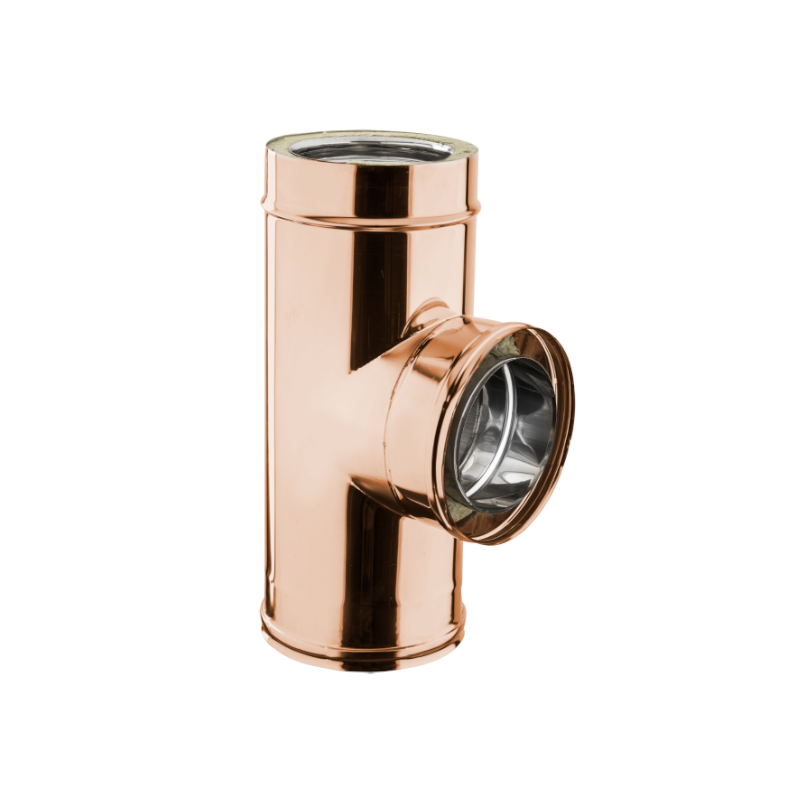

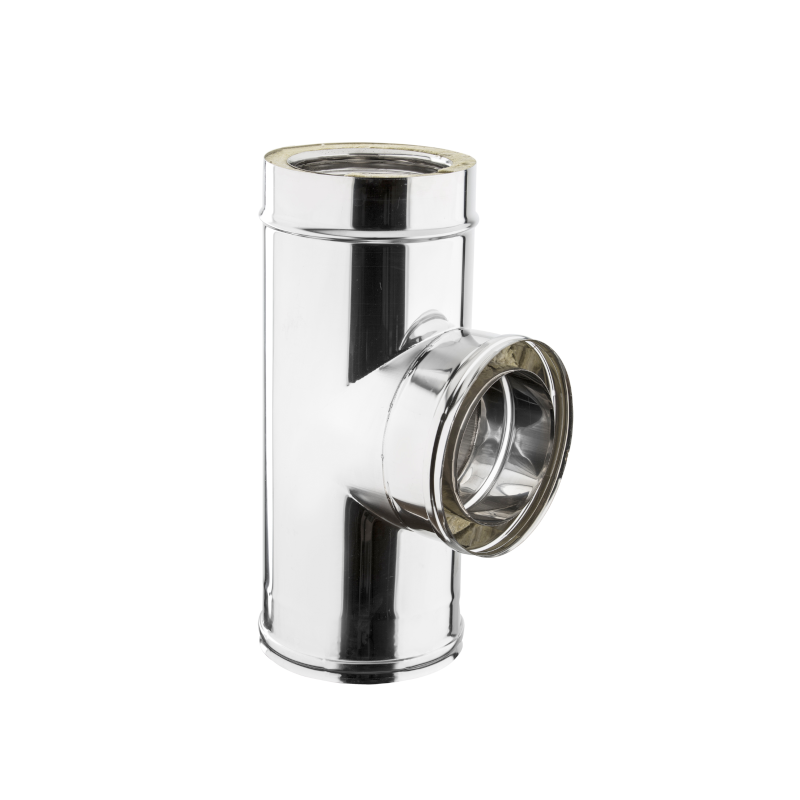

90° TEE
This fitting admits flue gases to the stack at an angle of 90°. Since the horizontal part is fashioned by extrusion, and not welded, it guarantees a perfectly airtight seal and is selfsupporting.
PRODOTTO SU MISURA
|

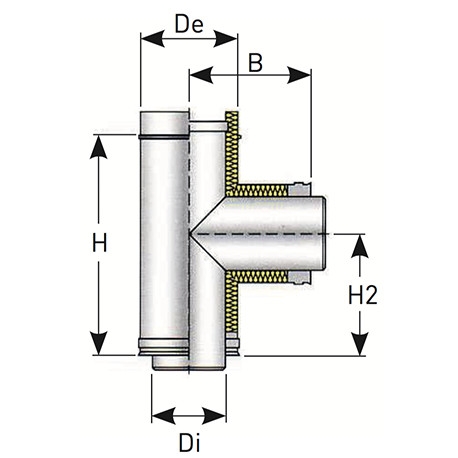

CODE |
Diam. Int. |
Diam. Est. |
Height mm |
B mm |
Insulation thickness mm |
H2 height hole center/ lower edge mm |
|
RACTD80DP |
80 |
130 |
445 |
140 |
25 |
250 |
|
RACTD100DP |
100 |
150 |
445 |
150 |
25 |
250 |
|
RACTD130DP |
130 |
180 |
445 |
165 |
25 |
250 |
|
RACTD150DP |
150 |
200 |
445 |
175 |
25 |
250 |
|
RACTD180DP |
180 |
230 |
445 |
190 |
25 |
250 |
|
RACTD200DP |
200 |
250 |
445 |
200 |
25 |
250 |
|
RACTD250DP |
250 |
300 |
445 |
225 |
25 |
250 |
|
RACTD300DP |
300 |
350 |
445 |
250 |
25 |
250 |
|
RACTD350DP |
350 |
450 |
600 |
300 |
50 |
325 |
