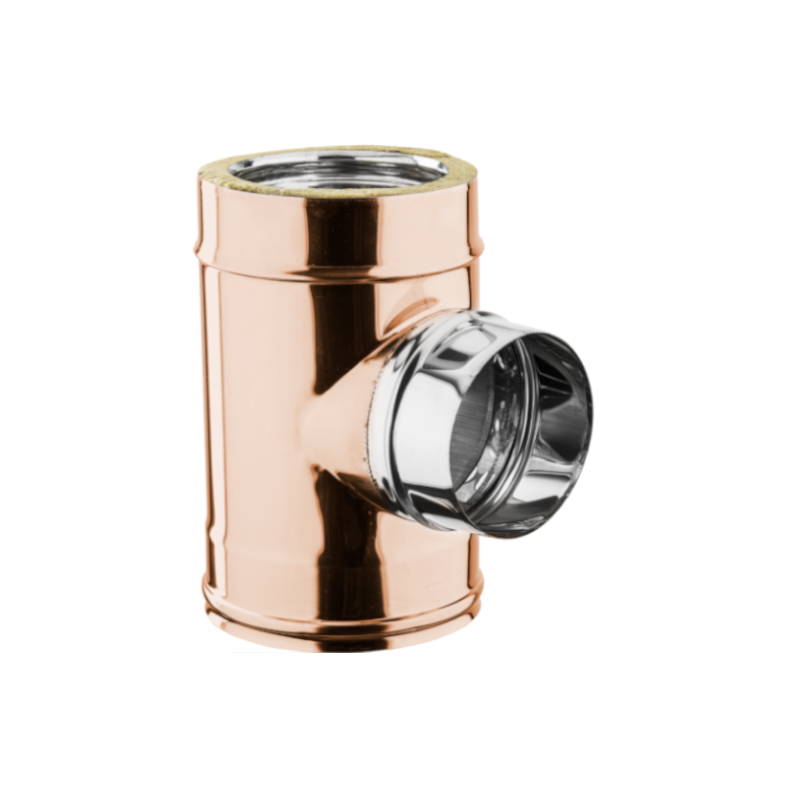

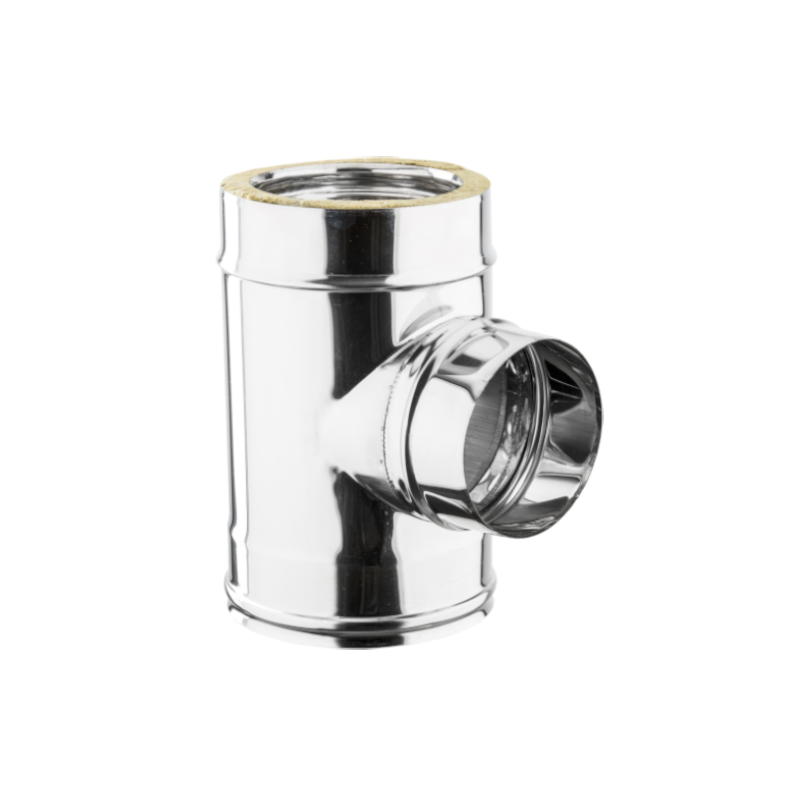

90° TEE REDUCED TO SINGLE WALL
Element used to connect smokes with chimney flue with an angle of 90°. Horizontal exit is single wall, of the same internal diameter of twin wall. On request available with horizontal female exit .
PRODOTTO SU MISURA
|

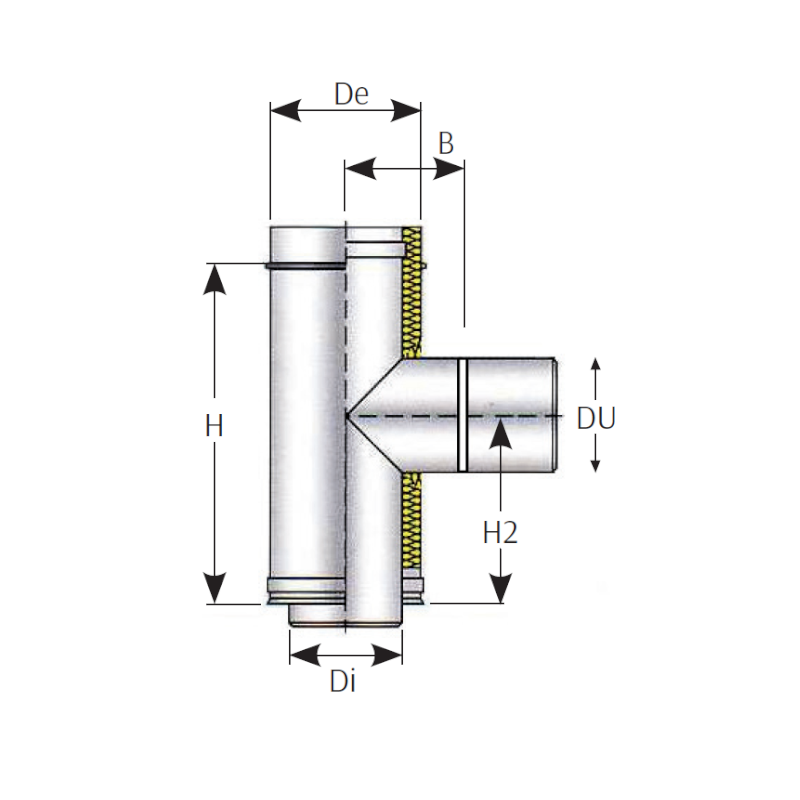

CODE |
Diam int |
Diam.est |
Height mm |
H 2 – mm |
Insulation thickness mm |
B – mm |
|
RACTD80DP-MP |
80 |
130 |
270 |
162,5 |
25 |
90 |
|
RACTD100DP-MP |
100 |
150 |
270 |
162,5 |
25 |
100 |
|
RACTD130DP-MP |
130 |
180 |
270 |
162,5 |
25 |
115 |
|
RACTD150DP-MP |
150 |
200 |
270 |
162,5 |
25 |
125 |
|
RACTD180DP-MP |
180 |
230 |
270 |
162,5 |
25 |
140 |
|
RACTD200DP-MP |
200 |
250 |
445 |
250 |
25 |
150 |
|
RACTD250DP-MP |
250 |
300 |
445 |
250 |
25 |
175 |
|
RACTD300DP-MP |
300 |
350 |
445 |
250 |
25 |
200 |
|
RACTD350DP-MP |
350 |
450 |
450 |
250 |
50 |
250 |
