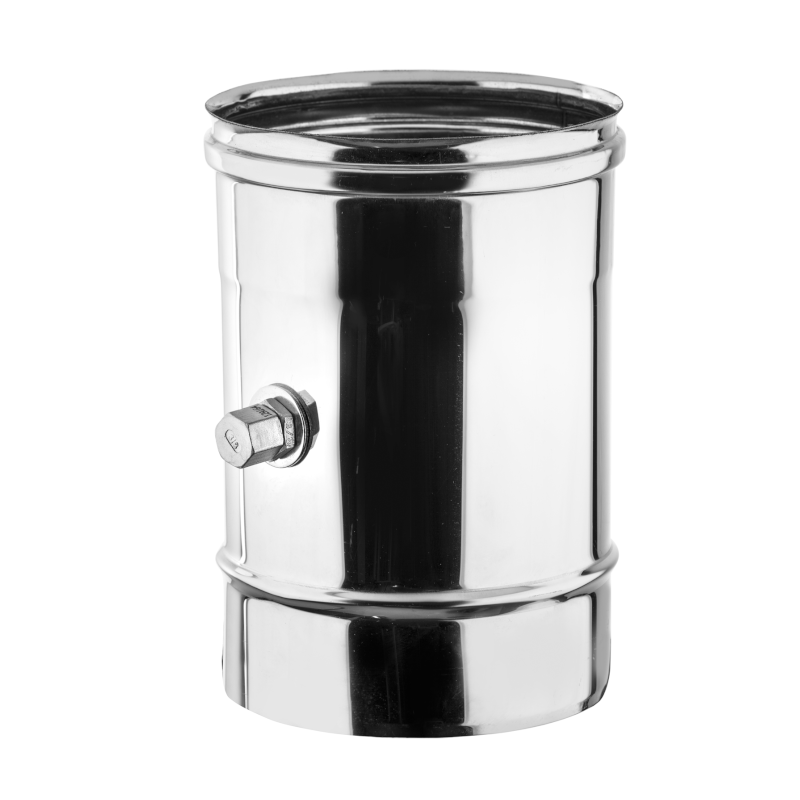

SMOKE PROBE LENGTH
Element for flue gas sampling as required under Italian Presidential Decree 1391, Articles 6.5 and 7.9 and specified by European UNI standard 13384. In vertical lengths, it is placed over the Tee if foreseen by the regulation.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|

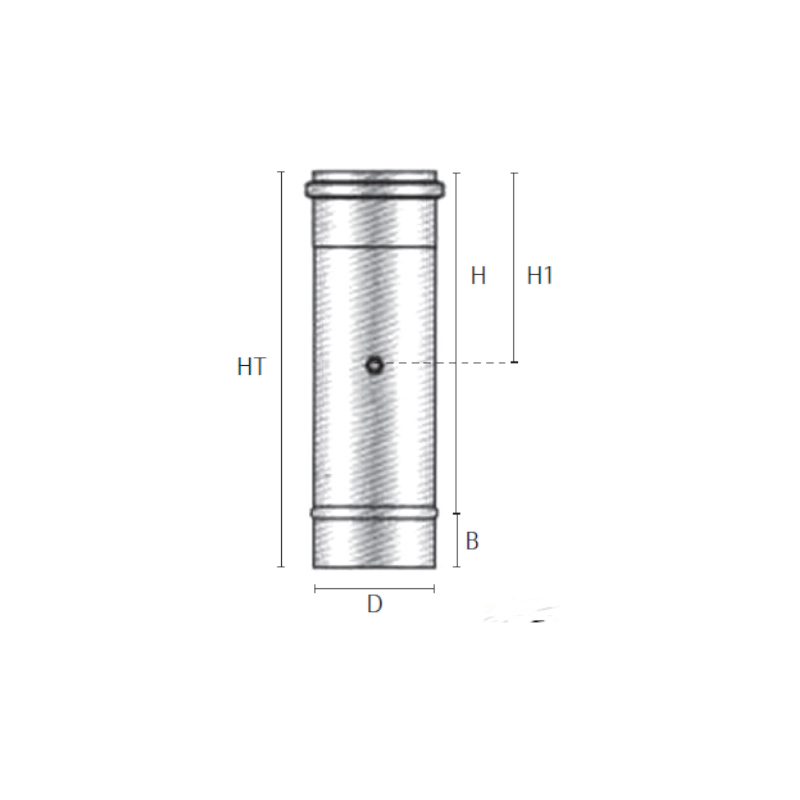

CODE |
Diam. mm |
“H” mm useful length |
“H1” mm measure upper edge – threaded insert |
“B” mm height spigot end |
|
MODPRELFUMID80MP |
80 |
190 |
120 |
50 |
|
MODPRELFUMID100MP |
100 |
190 |
120 |
50 |
|
MODPRELFUMID120MP |
120 |
190 |
120 |
50 |
|
MODPRELFUMID130MP |
130 |
190 |
120 |
50 |
|
MODPRELFUMID140MP |
140 |
190 |
120 |
50 |
|
MODPRELFUMID150MP |
150 |
190 |
120 |
50 |
|
MODPRELFUMID160MP |
160 |
190 |
120 |
50 |
|
MODPRELFUMID180MP |
180 |
190 |
120 |
50 |
|
MODPRELFUMID200MP |
200 |
190 |
120 |
50 |
|
MODPRELFUMID220MP |
220 |
190 |
120 |
50 |
|
MODPRELFUMID250MP |
250 |
190 |
120 |
50 |
|
MODPRELFUMID300MP |
300 |
190 |
120 |
50 |
