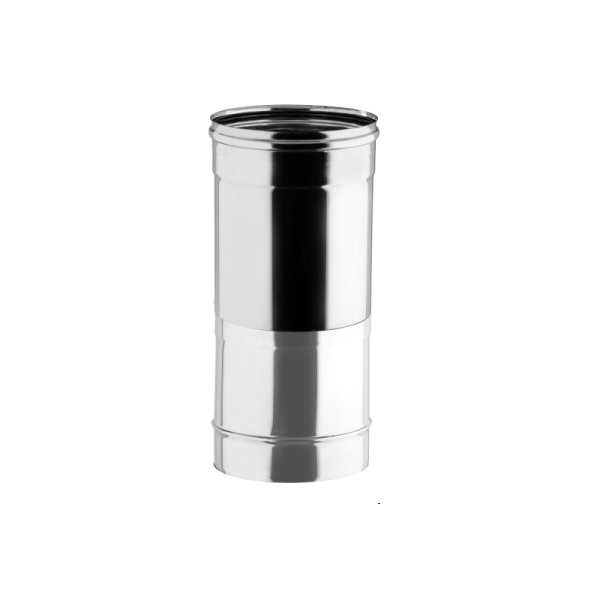

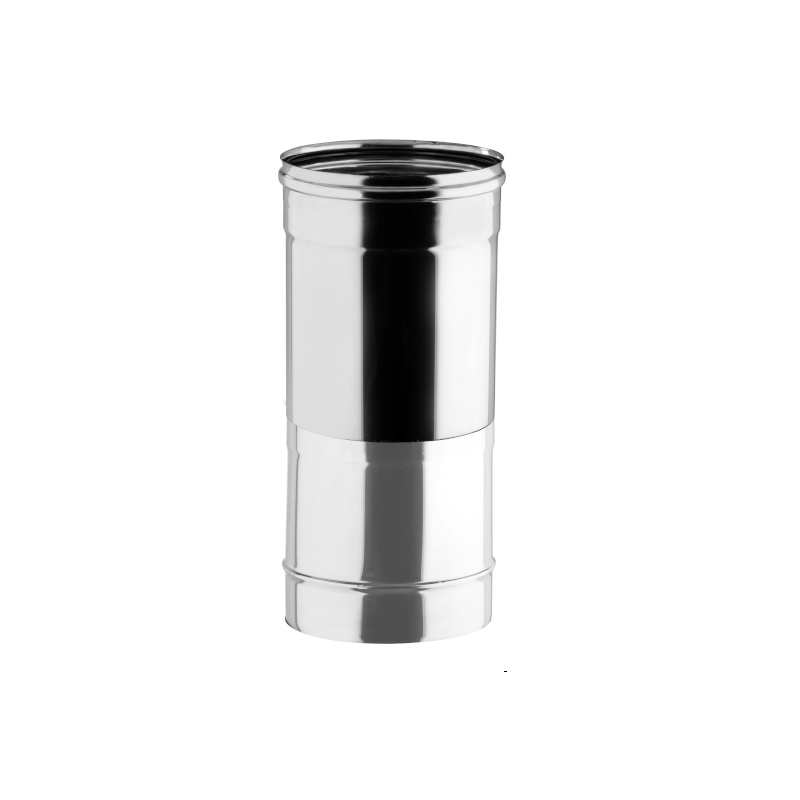

ADJUSTABLE LENGTH
This element can be used to extend a straight run of flue pipe by 120 mm (h min 320 mm – h max 440 mm). On vertical runs, a roof or ceiling anchor plate will be needed as the piece is not self-supporting.
Seals included only for diameters 80 and 100, to be ordered separately for all other diameters.
PRODOTTO SU MISURA
|

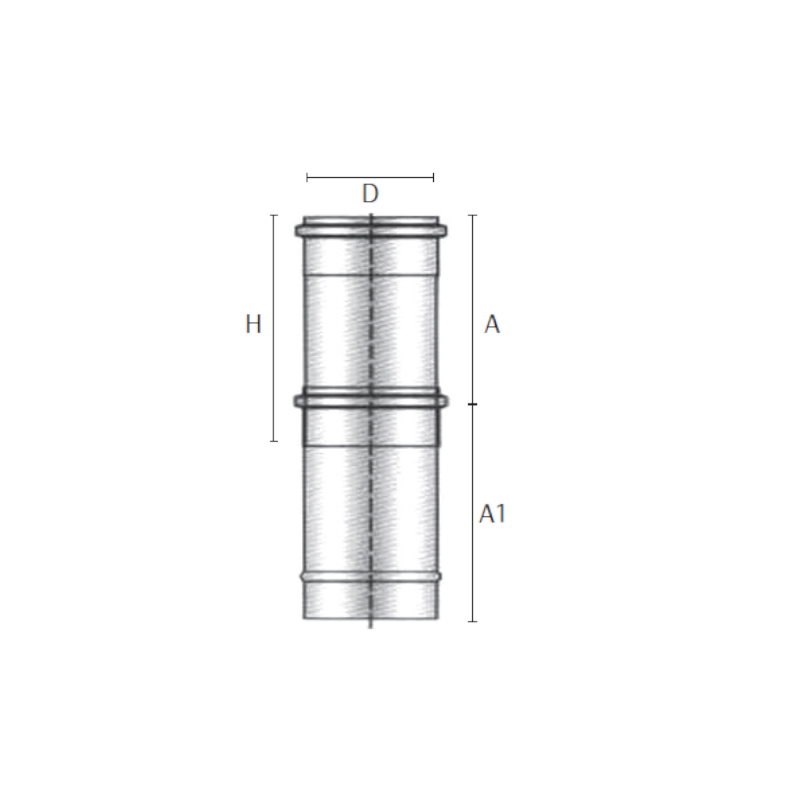

CODE |
Diam. Mm |
“A” mm total length |
“H” mm Length Telescopic piece |
“A1” mm Length straight piece |
“B” mm height male part |
|
MODTELD80MP |
80 |
370 |
240 |
250 |
50 |
|
MODTELD100MP |
100 |
370 |
240 |
250 |
50 |
|
MODTELD120MP |
120 |
370 |
240 |
250 |
50 |
|
MODTELD130MP |
130 |
370 |
240 |
250 |
50 |
|
MODTELD140MP |
140 |
370 |
240 |
250 |
50 |
|
MODTELD150MP |
150 |
370 |
240 |
250 |
50 |
|
MODTELD160MP |
160 |
370 |
240 |
250 |
50 |
|
MODTELD180MP |
180 |
370 |
240 |
250 |
50 |
|
MODTELD200MP |
200 |
370 |
240 |
250 |
50 |
|
MODTELD220MP |
220 |
370 |
240 |
250 |
50 |
|
MODTELD250MP |
250 |
370 |
240 |
250 |
50 |
|
MODTELD300MP |
300 |
370 |
240 |
250 |
50 |
